For outdoor distribution, 14.4 kV through 34.5 kV

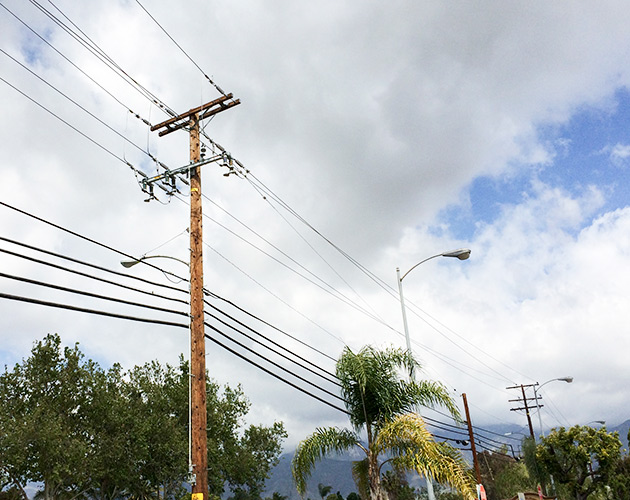

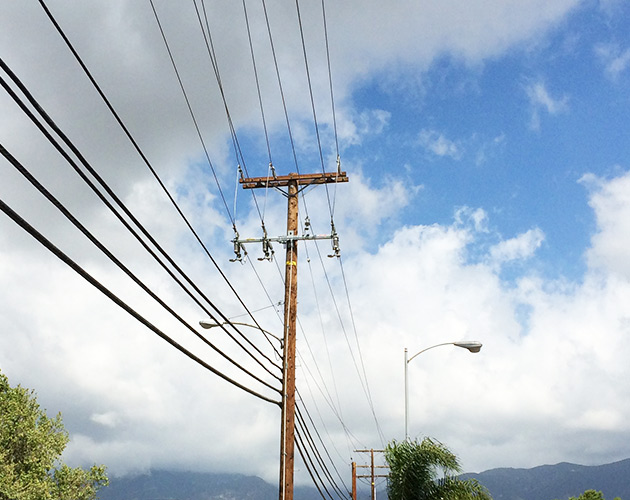

S&C Omni-Rupter Switches are load interrupter switches expressly designed to handle the switching duties on today’s overhead distribution feeders
Omni-Rupter Switches provide long-life, high-performance, no-external-arc circuit interruption, and they are ideally suited for the following switching duties:
- Line switching, including sectionalizing and feeder switching
- Transformer switching
- Cable switching
Omni-Rupter Switches are rated 900 amperes continuous and interrupting in voltage ratings of 14.4 kV and 25 kV, and rated 630 amperes continuous and interrupting at 34.5 kV. These gang-operated interrupter switches are available in a number of mounting configurations to accommodate a wide variety of line configurations encountered on today’s distribution systems.
(On mobile, swipe left for remaining ratings information.)
|kV||Amperes||Fault Closing Capability,
|14.4||17.0||110||900||900||65 000||25 000||20 000||42 000||21 000|
|25||29||150||900||900||65 000||25 000||20 000||42 000||21 000|
|34.5||38||200||630||630||65 000||25 000||25 000||32 500||21 000|
① Ratings apply to Omni-Rupter Switches with catalog number revision "R4." For ratings for previous versions of Omni-Rupter Switches, please contact your nearest S&C Sales office.
|Application Class||Maximum Amperes|
|14.4-kV and 25-kV Switches||34.5-kV Switches|
|Transformer Switching||Parallel Switching②||900||630|
|Line Switching||Load Splitting (Parallel or Loop Switching)||900||630|
|Line Dropping (Charging Current)||10||10|
|Cable Switching||Load Splitting (Parallel or Loop Switching)||900||630|
|Cable Dropping (Charging Current)||20||20|
② Applies to the switching of the primary of a transformer that remains energized from the secondary bus or to the disconnecting of a loaded secondary bus from one of the two transformers supplying that bus while the primary side of the transformer remains energized.
③ Omni-Rupter Switches can also switch the magnetizing currents associated with such loads.
A variety of optional features are available for Omni-Rupter Switches.

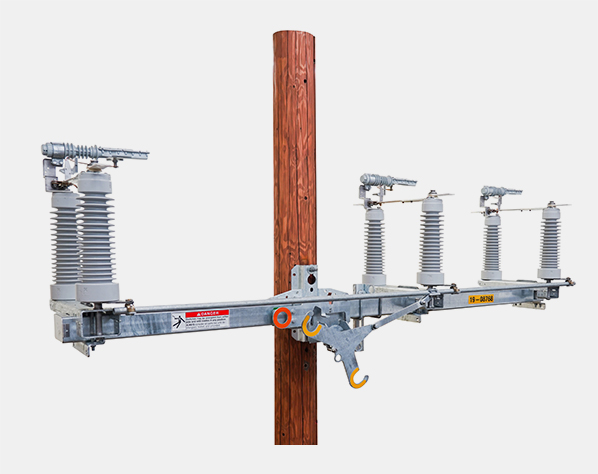

Factory-Adjusted Hookstick Operating Mechanism
- Operable from the ground using an “extendo” hot-stick. Reflectors are included to provide enhanced visibility at night and during inclement weather.
- No vandal-tempting operating handle to install, or grounding mat.
- Cuts switch installation time by up to 60%.
- Redesigned “U”-shaped hookstick pull rings provide a larger landing area for the hookstick, allowing operation from all angles—even directly behind the switch.
- A padlock hasp is incorporated into the hookstick handle, improving visibility by placing the lockout front and center on the switch.
- No field adjustment is needed—ever.
Phase-to-Ground Wildlife Protection
- The phase-to-ground wildlife protection is retrofittable to all installed Omni-Rupter Switches in the upright mounting style.
- The discs’ unique “snap-fit” design allows the protection system to be installed on a de-energized switch on the pole. No tools are required, and no disassembly of the switch parts is needed.
- The wildlife protection prevents animals from making phase-to-ground part contact.
Hookstick with Hookstick Lockout/Tagout
Hookstick-operated Omni-Rupter Switches (mounting configurations) are available with a hookstick-operated lockout/tagout device. This padlockable device locks the switch in the Open position with a single pull of the hookstick.
- Insulating section in the vertical shaft
- Mounting provisions for surge arresters
- Dead-ending extension-link assemblies
- Ice shields
- Open-gap wildlife protection
- Harsh-environment contacts
S&C’s 6801M Automatic Switch Operators are fully integrated, microprocessor-based controls that let you automate almost any distribution-class switch and are an ideal match for Omni-Rupter Switches. By combining and testing the electromechanical components, remote terminal unit (RTU), control, and communications as a single package, we also added intelligence, increased reliability, and reduced costs.
When equipped with the optional radio faulted-circuit indicators, the 6801M operator can isolate faults without the need for expensive line post current sensors. Sectionalizing is triggered by a signal from the radio faulted-circuit indicators, followed by a loss of control power.
When equipped with the optional voltage- and current-sensing option, the 6801M operator provides true RMS voltage and current readings plus fault detection, automatic sectionalizing, and loss-of-phase capabilities. When paired with S&C’s IntelliTeam® SG Automatic Restoration System, multiple 6801M operators can work together as teams with IntelliRupter® PulseCloser® Fault Interrupters, 6800 Series Automatic Switch Controls, and IntelliNode™ Interface Modules.
S&C Omni-Rupter Switches are expressly designed for overhead feeder switching and for use in sectionalization schemes. These interrupter switches are available in five mounting configurations to accommodate the variety of line constructions encountered on today’s distribution systems:

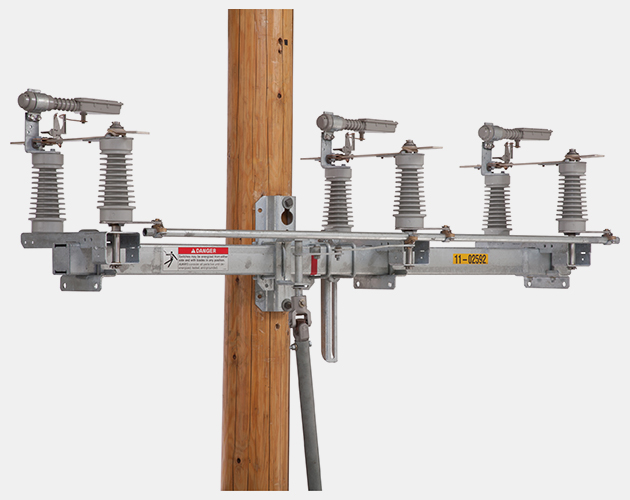

Upright Mounting Configuration
Switches in the popular upright mounting configuration are suitable for horizontal distribution-feeder line configurations and they are available with extra mounting pole clearance. Upright Omni-Rupter Switches use a rotating-type manual operating handle. To guard against animal related outages, upright interrupter switches are also available with optional wildlife protection. Other options include the hookstick operating mechanism and surge arrester mounting brackets. Upright Omni-Rupter switches can be specified with either a steel or fiberglass base.

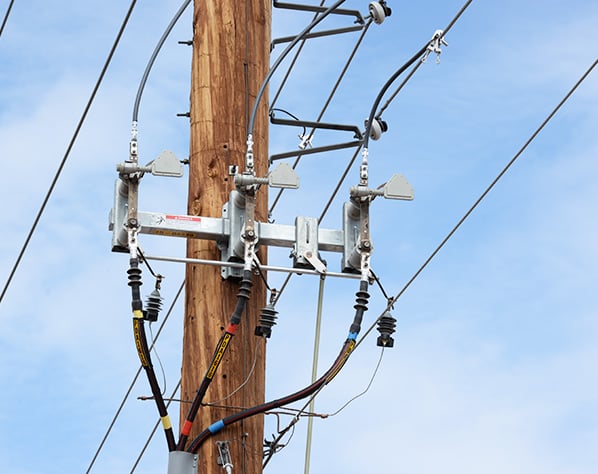

Vertical Mounting Configuration
Switches in the vertical mounting configuration are ideally suited for use at cable risers and transformer tapoffs from overhead lines. Vertical Omni-Rupter Switches use a reciprocating-type manual operating handle to open and close the switch-and can be provided with the hookstick operating mechanism. Upright switches are available with optional surge arrester mounting brackets and can be specified with either a steel or fiberglass base.

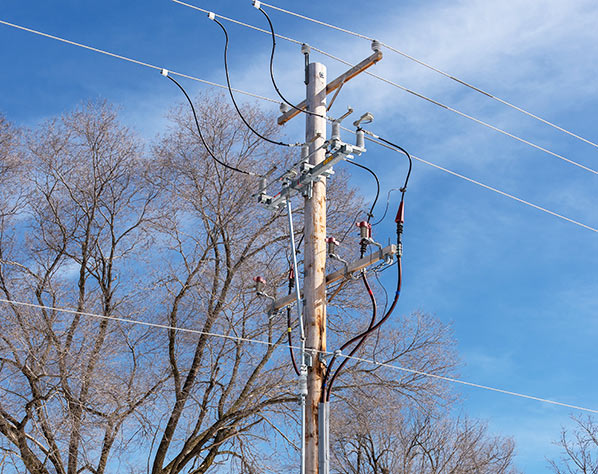

Tiered-Outboard Mounting Configuration
Switches in the tiered-outboard mounting configuration are designed for vertical (phase-over-phase) distribution-feeder line configurations. Tiered-outboard (Phase-over-phase) Omni-Rupter Switches use a reciprocating-type manual operating handle to open and close the switch-and can be provided with the hookstick operating mechanism. Tiered-outboard switches are available with optional surge arrester mounting brackets and can be specified with either a steel or fiberglass base.
Triangular Mounting Configuration
Switches in the triangular mounting configuration are tailored for use on systems having pole-top or triangular distribution-feeder line configurations. Triangular Omni-Rupter Switches use a rotating-type manual operating handle to open and close the switch.
Not available at 34.5 kV.
Inverted Mounting Configuration
Switches in the inverted mounting configuration are ideal for use in areas where raptors and other large birds are frequent nuisances to electrical systems. Inverted Omni-Rupter Switches use either a rotating-type or reciprocating-type operating handle to open and close the switch.
All Omni-Rupter Switches are available with a choice of either Cypoxy™, porcelain, or silicone polymer insulators and can be supplied with a wide variety of options-including insulated bases, insulated operating rods, surge arrester mounting brackets and wildlife protection. (Switches shown feature steel bases and Cypoxy Insulators.)
For a full list of options, see S&C Specification Bulletin 765-31.
Equipment Erection Drawings
Standard erection drawings for S&C Alduti-Rupter® Switches, Omni-Rupter® Switches, Scada-Mate® Switches, Circuit-Switchers, etc. can be requested by completing the form here.
